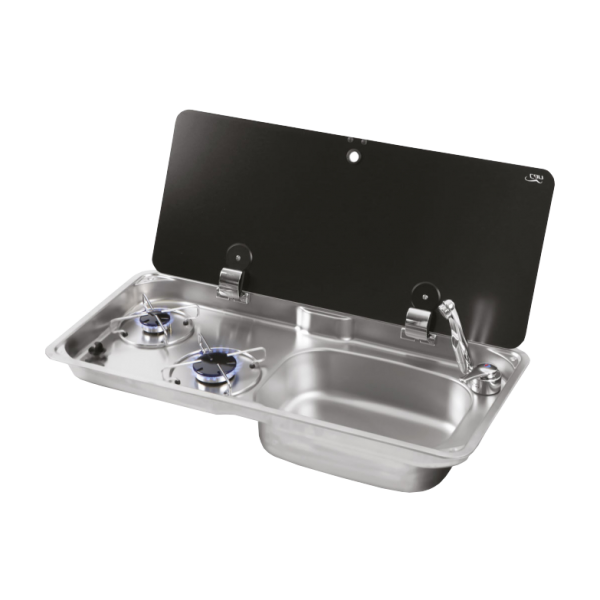

NCE CAN Cooker Range with Built-in Sink - Left Side

NCE CAN Cooker Range with Built-in Sink - Left Side

SPHERE S9, 24

SPHERE S9, 24" TV with SOUNDBAR, SMART-Stick & Stand

NCE CAN Cooker Range with Built-in Sink - Right Side

Availability:
In stock
SKU
FL1770PI

❖Features

CAN Cooker Range with Built-in Sink

Italian designed & manufactured with a modern stylish finish.

Description

CAN is the Italian manufacturer of hobs and sinks whose products can be found off the most exclusive coastlines, and in the heart of the wildest landscapes. For over 30 years European and North American leisure vehicles manufacturers have chosen CAN to help realize their kitchen ideas. Many great brands from both the nautical and recreational vehicle markets have found CAN be an exceptional partner.

Now, this is true in Australia with the partnership between CAN and NCE. Authoritative references demonstrate how CAN has, and continues to be successful in bringing the excellence of Italian design to appliances within recreational vehicle kitchens, helping them to become a sought-after brand in the RV industry. In partnership with NCE, CAN products are now available in Australia. The range is ever-growing with all relevant and required Australian and New Zealand Gas and Product standards being met, and specific design elements included for the Australian RV market.

Features

  • Italian designed & manufactured
  • Modern stylish finish
  • AGA compliant
  • Easy to install & connect
  • Square, rectangle & triangle designs
  • Tempered glass lid
  • Manual, piezo & electric models available
  • Patented soft close hinge design
  • Rubber stopper & open/close grip
  • Specifically designed & developed for RV installations
  • Enhance natural lines of the kitchen area
  • Compact unit with minimal overall dimensions
  • Closing lid allows the stove to be hidden creating an usable tabletop area
  • Certificate of Compliance: AGA 8740G
  • Australian Standards:
    AS/NZS 5263.0:2017-Gas Appliance-General Requirements
    AS/NZS – 5263.1.1:2016–Gas Appliance–Domestic Cooking Appliances

Specifications

Rectangular Hob-unit with Built-in Sink (Right Side)

  • 2 Burners
  • Piezo ignition
  • Size: 765(W) x 355(D) x 150(H) mm
  • Weight: 6kg

Rectangular Hob-unit with Built-in Sink (Left Side)

  • 2 Burners
  • Piezo ignition
  • Size: 765(W) x 355(D) x 150(H) mm
  • Weight: 6kg

Fold-down taps are available in cold or hot and cold.

❖Specifications

Brand NCE
Model FL1770PI
Side Right
Dimensions Width 765 mm
Depth 355 mm
Height 48 mm (hob area)
150 mm (sink area)
Weight 5.0 kg
Hob Unit
(straight valves with bypass Ø 0.36 mm)
1 x AUXILIARY burner (AUX)
Pn 1.00 kW – injector ø 0.50 mm – consumption 72.50 g/h
1 x burner SEMIRAPID (SR):
Pn 1.75 kW – injector ø 0.65 mm – consumption 127.0 g/h
Total nominal power: 2.75 kW
Total nominal consumption: 199.50 g/h
Device Class
(EN 30-1-1 4.3)
CLASS 3 – Combined recessed hob unit
Device Category
(EN 30-1-1 5.1.1.2)
CATEGORY I
Admitted Gases family
(EN 437)
(EN 30-1-1 4.2.2.4)
GAS OF THE THIRD FAMILY
▪ I3 B/P
▪ I3+
Gas Supply CATEGORY I3 B/P
▪ Butane (G30) 30 mbar
▪ Propane (G31) 30 mbar
CATEGORY I3+
▪ Butane (G30) 28-30 mbar
▪ Propane (G31) 37 mbar
Electric Connection
(only for IGN version with electronic lighting)
ELECTRIC CONNECTION IN EXTRA-LOW VOLTAGE - 12V / DC
Lighting
(different lighting systems according to product specifications)
▪ S (MANUAL) – using external igniter
▪ E (ELECTRONIC) - 12 V/DC GENERATOR - SPARK - 10Kv @ 30 pF
▪ P (PIEZOELECTRIC) – Mechanically/manually operated piezoelectric igniter inserted in hob unit
Gas Connection Galvanised steel train: Ø 8 mm - 1 mm thick
smooth end piece (30 mm) suitable for press fitting connecting with rigid / flexible hose
Gas Capillaries Copper capillary pipes: ø 4 mm – 0,5 mm thick
Aluminium capillary pipes: Ø 4 mm – 0.8 mm thick
Materials ▪ Stainless steel AISI 304
▪ Glass
▪ Chromium-plated steel
▪ Zama
▪ Brass
▪ Copper
▪ Galvanised steel
▪ Aluminium alloy
▪ Enamelled steel
▪ Epdm
Declaration of Conformity
(Directive 2009/142/EC and GAR 2016/426/EC)
▪ no asbestos
▪ suitable materials according to chapters 2 and 3 (Annex I - 2016/426/EC)
▪ there are no welds with melting point lower than 450°C
▪ flammable materials were not used
▪ the materials are suitable according to the requirements of chapter 3.7
Gas Certification No. AGA 8740G
Gas Type PROPANE
Test Point Pressure 2.75 kPa
Inj/Jet Sizes AUX: 0.52 - SR: 0.70
Nominal Gas Consumption 10.00 Mj/h
Shipping Weight 6.5kg
Shipping Dimensions(mm) 800 x 400 x 210
Manufacturer's warranty 1 years



More Information
gtin 0726436925037
MPN FL1770PI
Brand NCE
