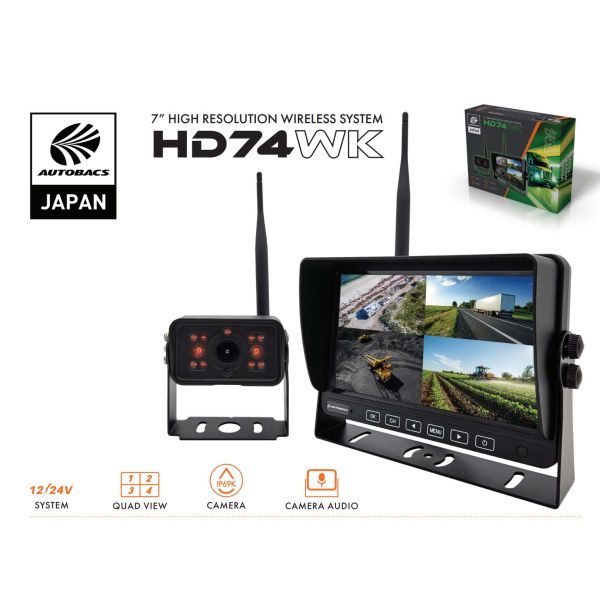

The HD74WK 7" high resolution wireless system enhances driving safety. This system features a top-of-the-line camera with audio capabilities, capable of providing crystal-clear visuals even in low light conditions. With its quad view functionality, you can easily pair up to 4 cameras and monitor multiple angles, ensuring complete visibility of your vehicle's surrondings.
12/24V System
1, 2, 3, 4 Quad View
IP69K Waterproof & Dustproof Camera
Camera Audio
Included
Monitor
Camera
Sunshade
U-Bracket
Wiring Harness
Camera DC Power Cable
Antennas
❖Specifications
Brand
Autobacs
SKU
HD74WK
Monitor
Video Decoding
NTSC & PAL
Cameras Supported
Up to 4 Cameras
Resolution
1024 x 600
Contrast
800
Brightness
500cd/m2
Viewing Angle
85° (Left/Right/Up/Down)
Viewing options
Single/Split Screen/Quad
Reversing Guidelines
Selectable On/Off
Operating Frequency
2.412~2.4835 GHz
Time Delay
180ms max
Operating Voltage
10-32V DC
Current Consumption
<400mA at 12V
Operating Temperature
-20°C~+70°C
Storage Temperature
-30°C~+80°C
Camera
Image Sensor
1/2.9 inch Starlight HD
Active pixel array
1920 x 1080
Viewing Angle
120° Diagonal, 103° Horizontal
Resolution
1000 TV lines
IP Rating
IP69K
Minimum Illuination
0.1 lux
Operating Frequency
2.412~2.4835GHz
Transmitter Power
20dbm
Operating Voltage
10-32V DC
Current Consumption:
<300mA at 12V
Operating Temperature
-20°C~+70°C
Storage Temperature
-30°C~+80°C
Dimensions
Monitor (Excluding Mount & Sunvisor)
179mm x122mm x 28mm
Monitor (Including Mount & Sunvisor)
197mm x137mm x 63mm
Camera (Excluding Mount)
79mm x 49mm x 54mm
Includes
Monitor, Camera, Sunshade, U-Bracketr, Wiring Harness, Camera DC Power Cable, Antennas
